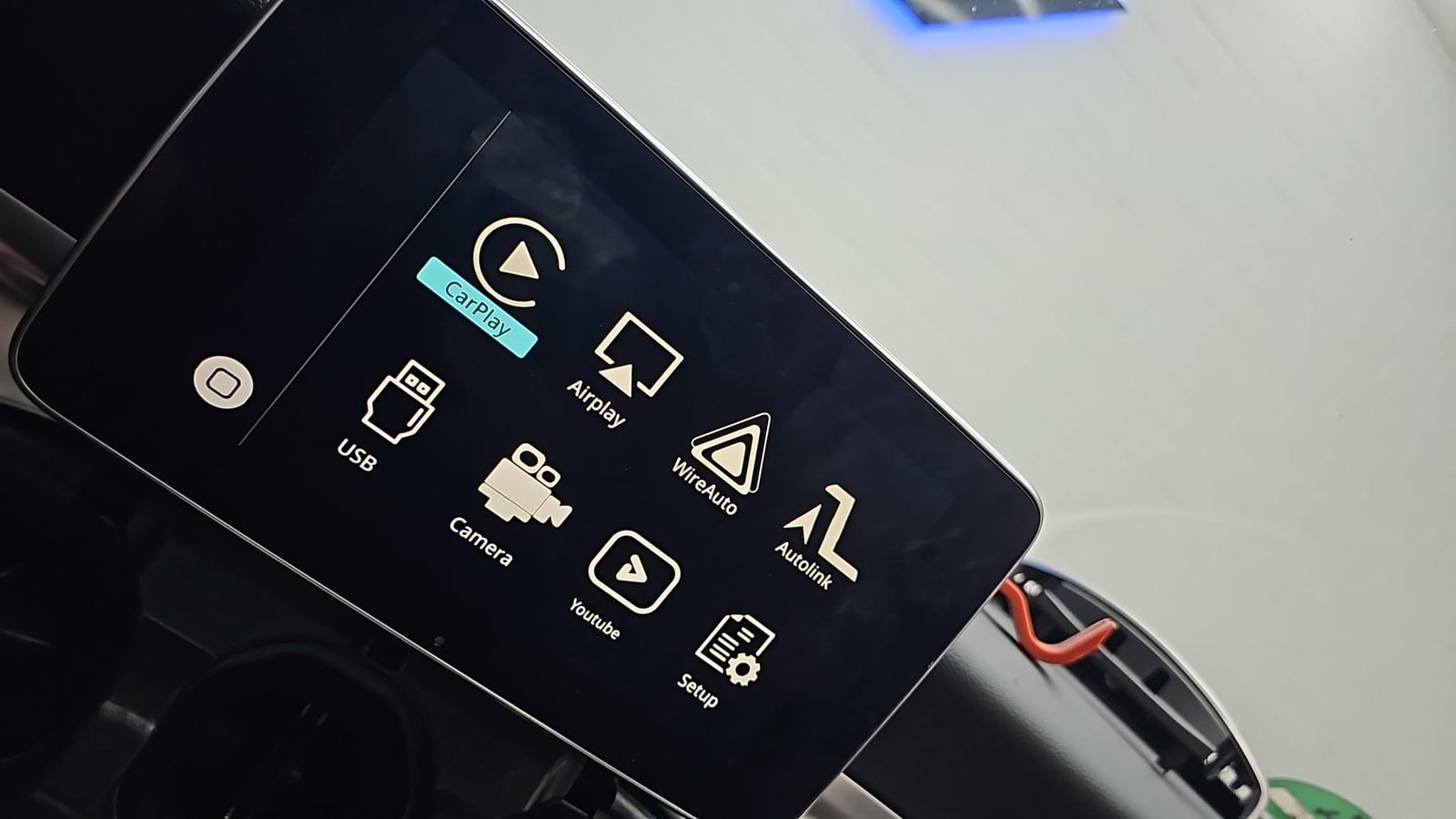

Integrated 3 in 1 module supports wireless Apple CarPlay (wireless & wired), Android Auto (wired) and screen mirroring (wired)
Quick wireless CarPlay connection without any pairing code
Auto switch CarPlay appearance (light or dark) depending on car headlights
Supports USB HD video (up to 1080P) and lossless music (APE, WAV, FLAC, MP3, WMA, etc) playback
Integrate DSP module and support audio EQ settings
Multi-adjustable volume including navi, multimedia, in call, ringer, voice assistant
Support AHD/CVBS front and rear view cameras
Auto enable front view after exiting reversing and easy setup its duration on menu settings (10s max.)
Adjustable dynamic parking guideline
One A/V input: RCA input and 720P HDMI input are alternatives (HDMI in only for C3+ series)
Compatible with factory microphone and speakers
Integrate CAN-Bus reader for quick trouble shooting
One-button (original steering wheel) press and hold to reset the interface
Mobile phone charging
Further software update via USB

Multimedia Interface I/O Spec:
Input: RCA*2 (front & rear view camera), RCA*3 (external A/V device), HDMI*1 (720P), 3.5mm jack female*1 (add on microphone), LVDS*1
Output: Fakra*1 (LVDS), 3.5mm jack female*1 (audio L/R)
Power Spec:
Input power: 9V-16V
Consumption: 6W
Optional Components (sold separate):
External microphone (Needed when a car without OEM MIC)

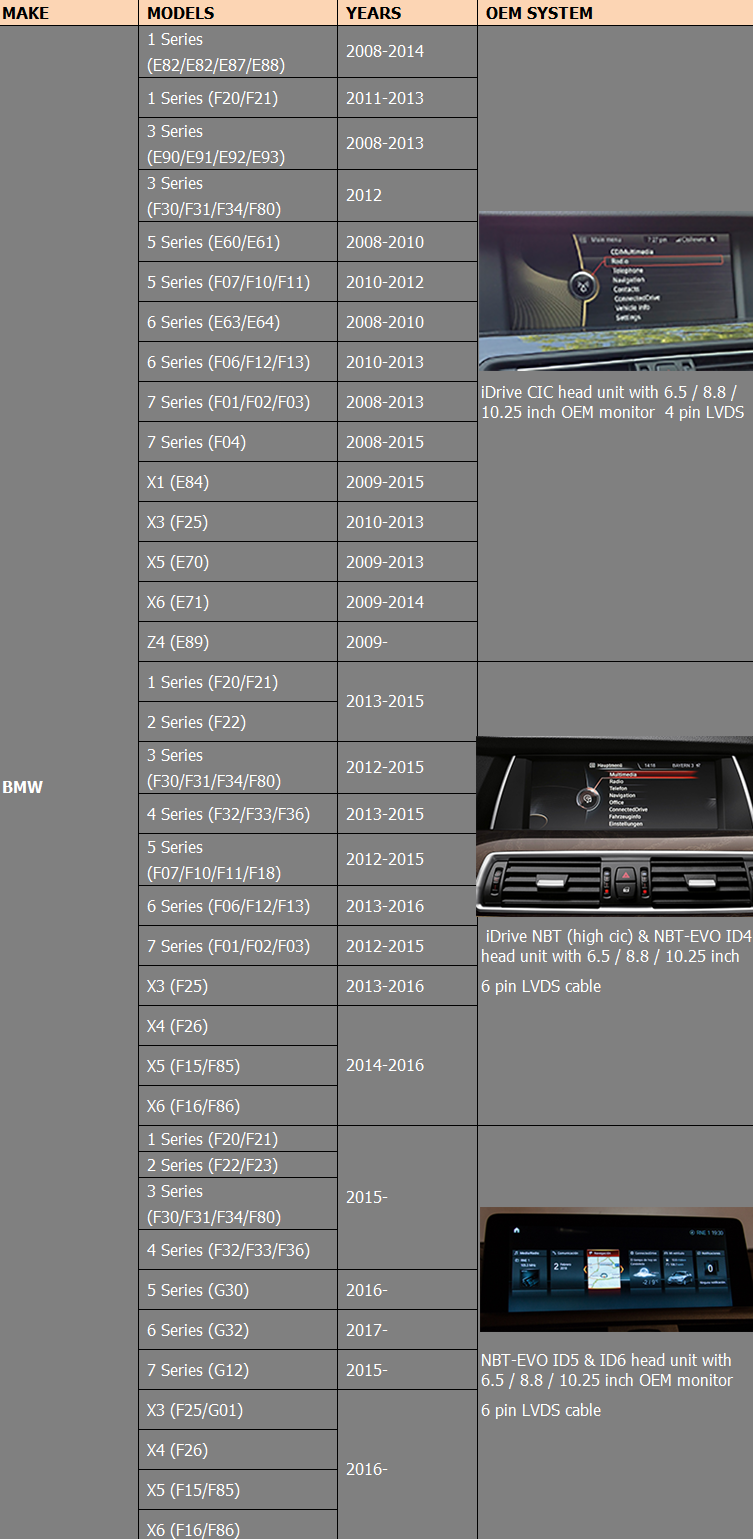

NOTE! The compatibility list is provided for reference only. The model years may slightly differ depending on the different territories. Please double check with our sales manager before ordering.
