BMW Video Interface

Description

This BMW video interface ( Intelligent Parking Assit System )is designed for NBT (High-CIC) system from 2013 MY. It supports HDMI input, A/V input, 2 camera inputs, PAS，Bluetooth, etc .
*Original style & friendly UI
*Operation from OEM iDrive buttons or steering wheel controls
*Support further upgrade by TF card
*Long press “MENU” button to see the front view
*Supply power to rear view camera
*Support Intelligent Parking Assist System including PDC (Parking Distance Control) and FPG (Flexible Parking Guideline)
*HDMI input for more clear audio & videos
*VGA input for specific 360 panoramic system, offers a clear picture
*Integrated Bluetooth module supports activating mobile-phone voice assistant by steering wheel or radio panel buttons (Need to work in “HDMI” mode with mirroring adapter)
*Supply power 5V and 12V for external A/V sources
*A wide range of applications covers almost all trim levels of NBT system
Optional Functions:
Built-in 3 in 1 module (CarPlay + Android Auto + Mirroring), also supports USB full HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA)
Additional microphone for a car without factory MIC

Multimedia Interface I/O Spec:
Input: HDMI *1, A/V (RCA) *1, CVBS*2 (Front/Rear view camera, NTSC only), VGA *1(Specific 360 panoramic system)
Output: LVDS output
Power Spec:
Input power: 9V-16V
Consumption: 6W

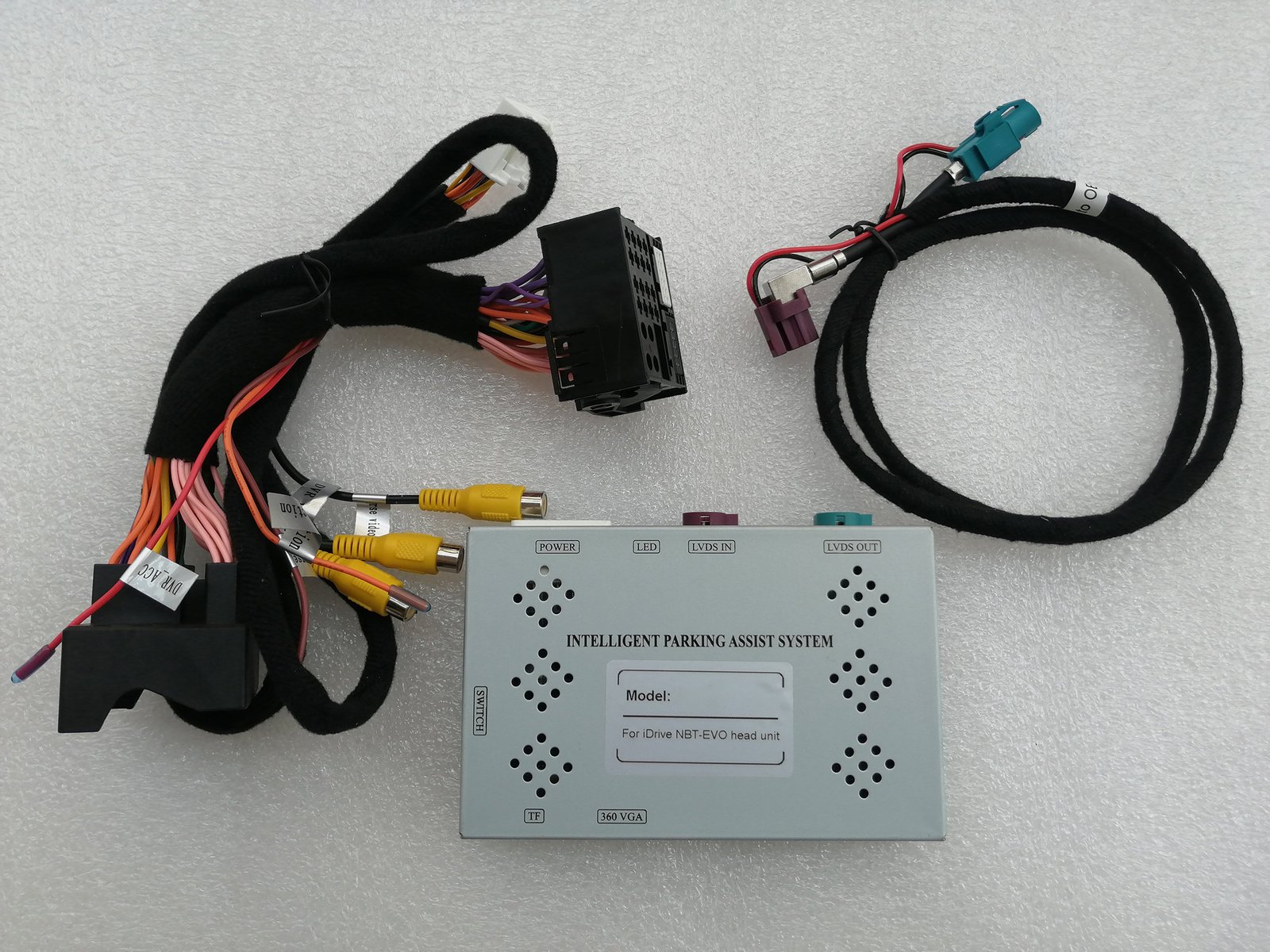

Package Content:
Interface unit *1
Quadlock main cable *1
6-pin LVDS cable *1
Multimedia cable *1
Optional Components:
External microphone
